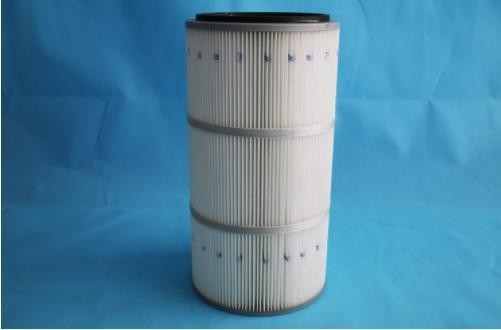

Spun Bonded Polyester filter cartridge
  • Spun Bonded Polyester filter cartridge

Spun Bonded Polyester filter cartridge

제품 상세정보
하이 라이트:

polyester filter bag

,

replacement dust collector bags

제품 설명
Product Detail
Share to

Spun Bonded Polyester filter cartridge

Inquire Add to Inquiry list
  • Product Description
Description
1) Imported Donaldson filter media.
2) Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.
3) Smooth filter media surface,not sticky.
4) Excellent chemical resistance.
5) Good filter material stiffness,can be repeated washed.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp: Galvanized metal with filter media potted in plastisol.
Inner Core: Expanded metal,either galvanized or stainless steel.
Pleats:To maintain maximum filtering surface,it maintains uniform spacing and is held in place with hot melt spiral beading inside and outside.
Gasket: Seamless Urethane.
Features of dust cartridge:
1) Operating temperature135C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.
Size for Choose:
ConicalLength 660MM(26')*Large-end OD 445mm(17.5')*Small-end OD 324mm(12.75')
Cylindrical donaldson air filterLength 660MM(26')*Large-end OD 324mm(12.75')*Small-end OD 324mm(12.75')
Previous : Gas turbine air filter cartridge
NextNano fibre filter cartridge
